Grundfos CM Booster - CMB 5-46 with 60L tank - Suitable for 4-6 bathrooms

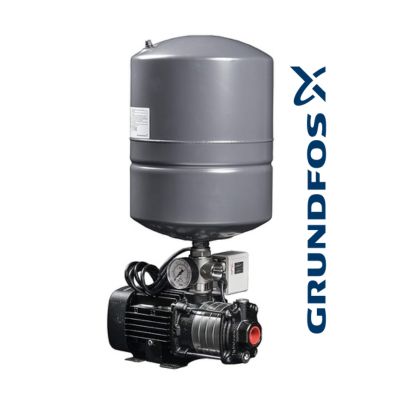

The Grundfos CMB with PT is a compact booster pump designed for domestic and light commercial use. The booster unit consists of a Grundfos CM pump with stainless steel hydraulic components and a pressure tank.

The CM pump is supplied with a pressure tank for even distribution of water pressure. When the water demand increases, there will be a pressure drop in the pipeline from the pre-set level. The pump automatically starts till reaches pre-set cut-off pressure.

SPECIFICATIONS

Power: 0.9kW (1.2HP)

Pressure Tank: 60 Litres

Suction: 25mm

Delivery: 32mm

APPLICATIONS

Mains boosting, Household water supply, Boosting from above ground water tanks

FEATURES

Silent operation, compact design and highly reliable, Wide performance range, Liquid temperature from 20oC upto 120oC(pump only), Built-in thermal protection, F class installation, 100 Start / Stop Per hour

CONSTRUCTION

Electro-coated cast iron parts free from corrosion, High efficient motor, Horizontal multistage centrifugal pump, Long life components are of corrosion and wear resistance stainless steel
